Spanawave CK056K02 Calibration Kit - New
Overview

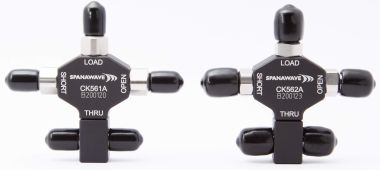

Spanawave network analyzer calibration kits with open, short, load, and thru (OSLT) provide the RF components needed to enable stable and accurate error correct measurements. The calibration kits offer broad test equipment coverage for use with the 8003 scalar network analyzer as well as being compatible with most network analyzers produced by other manufacturers. Spanawave calibration kits yield complete calibrations as they take into consideration the three major sources of systemic error correction by one port calibration at both ports. Model based standard definitions of the calibration standards are reported in Agilent/Keysight, Rohde and Schwarz, and Anritsu compatible VNA format. The CK056K02 consists of 1 each CK561A and CK562A.
Specifications
Interface |
|
According to Mechanically compatible with |
2.92mm (m)/(f) 3.5 mm and SMA |
Electrical Data |
|
Thru | |
Return loss | ≥ 32 dB, DC to 4 GHz ≥ 30 dB, 4 GHz to 26.5 GHz ≥ 28 dB, 26.5 GHz to 40 GHz |
Open | |
Error from nominal phase | ≤ 1.5°, DC to 4 GHz ≤ 4.0°, 4 GHz to 26.5 GHz ≤ 5.0°, 26.5 GHz to 40.0 GHz |
Short | |
Error from nominal phase | ≤ 1.5°, DC to 4 GHz ≤ 4.0°, 4 GHz to 26.5 GHz ≤ 5.0°, 26.5 GHz to 40.0 GHz |
Load | |
Return loss DC Resistance Power handling |
≥ 40.0 dB, DC to 4 GHz ≥ 28.0 dB, 4 GHz to 26.5 GHz ≥ 25.0 dB, 26.5 GHz to 40.0 GHz 50 Ω ± 0.5 Ω ≤ 0.5 W |
Accessories |
|
---|
