Spanawave CK052D Calibration Kit - New
$3,400.00
SKU
200104293-new

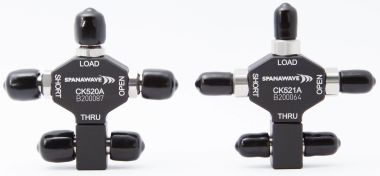

4-in-1 OSLT Calibration Kit, DC to 26.5 GHz, 3.5 mm (m)/(f), 50 Ohm
Overview
Spanawave network analyzer calibration kits with open, short, load, and thru (OSLT) provide the RF components needed to enable stable and accurate error correct measurements. The calibration kits offer broad test equipment coverage for use with the 8003 scalar network analyzer as well as being compatible with most network analyzers produced by other manufacturers. Spanawave calibration kits yield complete calibrations as they take into consideration the three major sources of systemic error correction by one port calibration at both ports. Model based standard definitions of the calibration standards are reported in Agilent/Keysight, Rohde and Schwarz, and Anritsu compatible VNA format. The CK052D consists of 1 each CK520A and CK521A.
Specifications
Interface |
|
| According to Mechanically compatible with |
3.5mm (m)/(f) 2.92 mm and SMA |
Electrical Data |
|
| Thru | |
| Return loss | ≥ 34 dB, DC to 4 GHz ≥ 32 dB, 4 GHz to 8 GHz ≥ 30 dB, 8 GHz to 26.5 GHz |
| Open | |
| Error from nominal phase | ≤ 1.0°, DC to 4 GHz ≤ 2.0°, 4 GHz to 8 GHz ≤ 3.0°, 8 GHz to 26.5 GHz |
| Short | |
| Error from nominal phase | ≤ 1.0°, DC to 4 GHz ≤ 2.0°, 4 GHz to 8 GHz ≤ 3.0°, 8 GHz to 26.5 GHz |
| Load | |
| Return loss DC Resistance Power handling |
≥ 40.0 dB, DC to 4 GHz ≥ 35.0 dB, 4 GHz to 8 GHz ≥ 30.0 dB, 8 GHz to 26.5 GHz 50 Ω ± 0.5 Ω ≤ 0.5 W |
