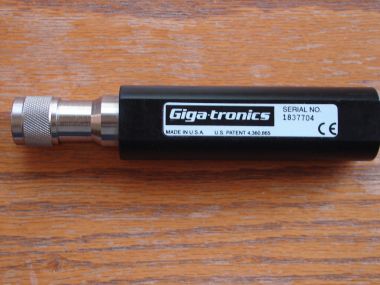

Spanawave 80330A Power Sensor - Refurbished
SKU
200001086-grp
True RMS Power Sensor; +20 dBm to -30 dBm; 10 MHz to 18 GHz, K(m)
Overview
Spanawave (formerly Giga-tronics) CW power sensors measure CW power from 10 MHz to 50 GHz at more than 17,500 readings per second over GPIB. These sensor groups work with the 8540B, 8540C, 8650A, 8650B and 58542 VXI series power meters and the 8003 Scalar Network Analyzer.
80330A Specifications
- Frequency Range: 10 MHz - 18 GHz
- Maximum Power: +33 dBm (2 W)
- Power Linearity: -30 to +20 dBm
- RF Connector: Type K(m), 50 ohm
- VSWR: 1.12: 0.01 - 12 GHz / 1.15: 12 - 18 GHz
