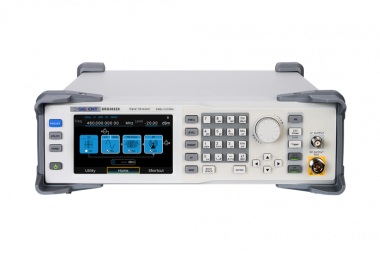

Siglent SSG3021X RF Signal Generator - New
$2,645.00
SKU
200105710-new
RF Signal Generator, 9 kHz to 2.1 GHz
Features
- 0.01 Hz frequency setting resolution
- Level output from -110 dBm to +13 dBm
- Maximum level up to +20 dBm (typical)
- Phase Noise: -110 dBc/Hz @ 1 GHz , 20 kHz offset (typical)
- Level accuracy <= 0.7 dB (typical)
- Provides AM, FM, and PM analog modulation with internal, external or Int+Ext source
- Pulse modulation, on/off ratio >= 70 dBc
- USB power meter measurement
- Web browser remote control on PC and mobile terminals
- Standard interfaces: USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet)
- Optional interface: GPIB
- 5 inch TFT capacitive touch screen; mouse and keyboard supported
