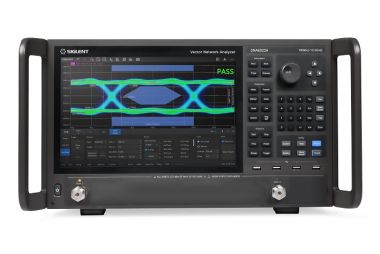

Siglent SNA6022A Vector Network Analyzer - New
$43,281.00
SKU
200121991-new
Vector Network Analyzer, 100 kHz to 13.5 GHz, 2-Port
Features
- Frequency resolution: 1Hz
- Level resolution: 0.05dB
- Range of IFBW: 1Hz~10MHz
- Setting range of output level: -55dBm~+10dBm
- Dynamic range: 135 dB
- Calibration types: Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration
- Measurement types: Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, spectrum analysis frequency offset, scalar mixer measurement, pulse measurement, material measurement
- Internal Bias-Tee connections
- Interface: LAN, USB Device, USB Host (USB-GPIB)
- Remote control: SCPI / Labview / IVI based on USB-TMC / VXI-11 / Socket / Telnet / WebServer
- 12.1-inch touch screen
- Video output: HDMI/DVI-D/DP
