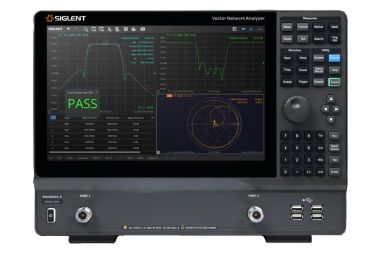

Siglent SNA5003X-E Network Analyzer - New
$5,780.00
SKU
200125532-new
Vector Network Analyzer, 9 kHz to 3 GHz, 2-Port
Features
- Frequency range: 9 kHz - 3 GHz
- Frequency resolution: 1 Hz
- Level resolution: 0.05 dB
- Range of IFBW: 1 Hz~10 MHz
- Setting range of output level:-40 dBm ~ +10 dBm
- Dynamic range: 125 dB (typ.)
- Types of calibration: Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, TRL calibration
- Types of measurement: Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time domain parameter analysis, impedance conversion, fixture simulation, adapter removal/insertion, spectrum analysis
- Internal Bias-Tee connections
- Interface: LAN, USB Device, USB Host (USB-GPIB)
- Remote control: SCPI/ Labview/ IVI based on USB-TMC / VXI-11 / Socket /Telnet / WebServer
- 12.1-inch touch screen
- Video output: HDMI
