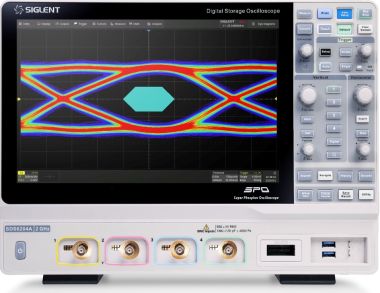

Features

• 4 analog channels, up to 2 GHz bandwidth with 5 GSa/s (10 GSa/s ESR) sample rate at each channel
• Low background noise, supports 0.5 mV/div to 10 V/div vertical scales
• SPO technology: Waveform capture rates up to 170,000 wfm/s (normal mode), and 750,000 wfm/s (sequence mode), Supports 256 level intensity grading and color temperature display modes, 500 Mpts Record length in total for all 4 channels, Digital trigger system
• Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
• Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL STD 1553B, SENT and Manchester
• Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
• History waveform record (History) function, the maximum recorded waveform length is 80,000 frames
• Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History and Ref
• 4 Math traces (8 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
• Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, Power Analysis and Eye/Jitter Analysis
• High Speed hardware based Average, Hi Res; High Speed hardware based Mask Test function, with Mask Editor tool for creating user defined masks
• 16 digital channels (optional)
• 25 MHz function/arbitrary waveform generator, built in multiple predefined waveforms
• Large 12.1 inch TFT LCD display with 1280x800 resolution; Capacitive touch screen supports multi touch gestures
• Interfaces include: USB Hosts, USB Device (USBTMC), LAN VXI 11/Telnet/Socket), micro SD card, Pass/Fail, Trigger Out, HDMI
• Built in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard.
