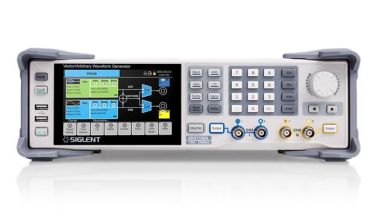

Siglent SDG7102A Function/Arbitrary Waveform Generator - New
$18,389.00
SKU
200114402-new
1 GHz, 2 Ch Function/Arbitrary Waveform Generator
Features
- Dual channel differential/single ended output, 16 bit LVDS/LVTTL digital bus output
- High-performance sampling system with 5 GSa/s sample rate and 14 -bit vertical resolution
- Generates arbitrary waveform with sample rates of 0.01 Sa/s ~ 2.5 GSa/s, with maximum memory depth of 512 Mpts, and provides segment editing/playback functions
- Generates vector signals with up to 500 MS/s symbol rate
- Generates low jitter pulses with 1ns minimum pulse width and 500ps minimum edge
- Up to 1 GHz bandwidth White Gaussian Noise and the bandwidth is adjustable
- Supports PRBS up to 312.5 Mbps
- Digital bus can output digital signals up to 1 Gbps
- Supports analog/digital modulation, sweeping and bursting
- Enhanced dual channel operation functions: inter-channel tracking, coupling and copying; Dual channel superposition function; Supports mutual modulation between channels
- The 24 Vpp analog output is superimposed with ± 12 Vdc offset to provide a maximum output range of 24V (48V)
- High precision Frequency Counter
- 5 inch capacitive touch screen with resolution of 800x480; Supports external mouse and keyboard operation; Supports WebServer to control the instruments remotely
- Supports multiple interfaces: 10MHz In, 10MHz Out, Trigger In/Out, Markers etc
- Supports SCPI command for easy integration into test systems
