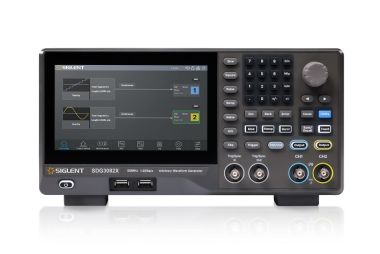

Features

• Dual channels, 1.2 GSa/s sampling rate, 16-bit vertical resolution
• Using TrueArb technology, arbitrary waveforms can be output point by point. Under the premise of not losing waveform details, low-jitter waveforms can be output at a sampling rate of 10 mSa/s ~ 600 MSa/s
• Supports sequence wave playback function, with a maximum waveform memory of 40 Mpts per channel
• Using EasyPulse technology, units can output low-jitter square waves/pulses, and the pulse wave can achieve fine adjustment of pulse width, rising/falling edges, with extremely high adjustment resolution and adjustment range
• Supports dual pulse output function, which can be used to measure the switching parameters of power devices and evaluate their dynamic characteristics
• Supports PRBS up to 120 Mbps
• Rich analog and digital modulation functions: AM, DSB-SC, FM, PM, FSK, ASK, PSK and PWM
• Sweep and Burst functions, Harmonic function, Waveform Combining function
• High precision Frequency Counter
• 196 built-in arbitrary waveforms
• Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11); optional GPIB
• Built-in WebServer supports instrument control via web browser
• 7-inch display touch screen
