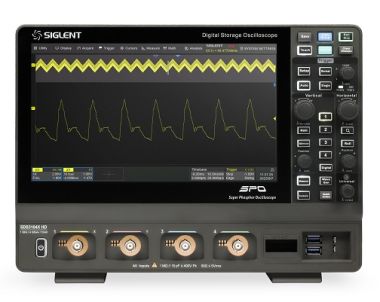

Features

• 12 bit ADC
• Low background noise: 125 μVrms @ 1 GHz bandwidth
• Waveform capture rates up to 200,000 wfm/s in Normal mode and 890,000 wfm/s in Sequence mode
• Supports 256 level intensity grading and color temperature display modes
• Digital trigger system
• Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
• Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester and ARINC429
• 4 Math traces (4 Mpts FFT, Filter, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
• Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode plot and Power Analysis
• Large 10.1 inch TFT LCD display with 1024 x 600 resolution; Capacitive touch screen supports multi touch gestures
• Interfaces include: 2x USB 3.0 Host, 1 x USB 2.0 Host, USB 3 .0 Device (USBTMC), 1000M LAN (VXI-11/Telnet/Socket/LXI), External Trigger In, Aux Out (Pass/Fail, Trigger Out)
